There are three types of single-effect evaporators
1.WZ single-effect external circulation vacuum concentrator is a common type, used for evaporation of aqueous solutions.
2.WZH single-effect external circulation vacuum concentrator recovery is an alcohol recovery type, used for evaporation of alcohol solutions, with a large condensation cooling area to ensure alcohol recovery, with a recovery concentration of 70-85%, an alcohol loss rate of <5%, and a temperature of <40C after alcohol recovery.
3.WZS single-effect external circulation vacuum concentrator paste collector, used for single-effect evaporation and concentrated paste collection. After normal evaporation of the single effect, close the valves connecting the nozzle and circulation pipe of the heating chamber and the evaporation chamber, so that all the liquid enters the evaporation chamber, and the jacket of the evaporation chamber is heated to perform atmospheric pressure decompression concentration to increase the concentration specific gravity of the material to 1.2-1.3.

Equipment Features

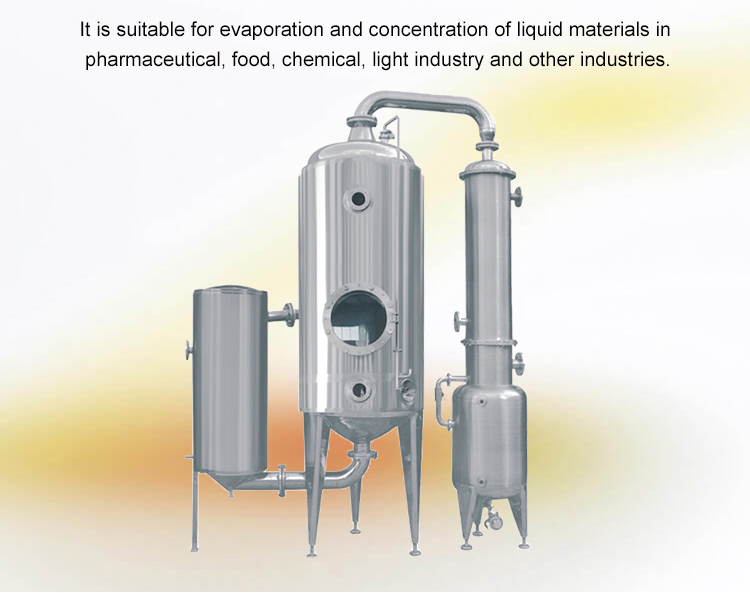

Single-effect external circulation vacuum concentrator, composed of heater, evaporator, defoamer, condenser, cooler, liquid receiving tank, etc., all parts in contact with materials are made of high-quality stainless steel. This device is suitable for evaporation and concentration of liquid materials in pharmaceutical, food, chemical, light industry and other industries. This equipment has a short concentration time and a fast evaporation speed, and can better keep heat-sensitive materials from being damaged.
